Miracle 360 Console Anchor – 3-Leg & 1-Ramp Supported (2 Persons)
Miracle 360 3-Leg and 1-Ramp Supported Console Anchor System is a working at height solution specially developed for sites where vehicle parking areas are tight or ground fixing is not possible. The system provides its own stability without requiring any additional counterweights, thanks to its 3 support legs and 1 ramp unit on which the vehicle drives.
The 360-degree rotating anchorage head of the system offers safe working opportunities on two different vehicles parked side by side, while this rotation angle can be restricted to 180 degrees depending on site conditions. Adjustable up to a height of 7 meters with its telescopic body structure, Miracle 360 can be quickly dispatched to different operational points within the facility as it is easily transportable by forklift.

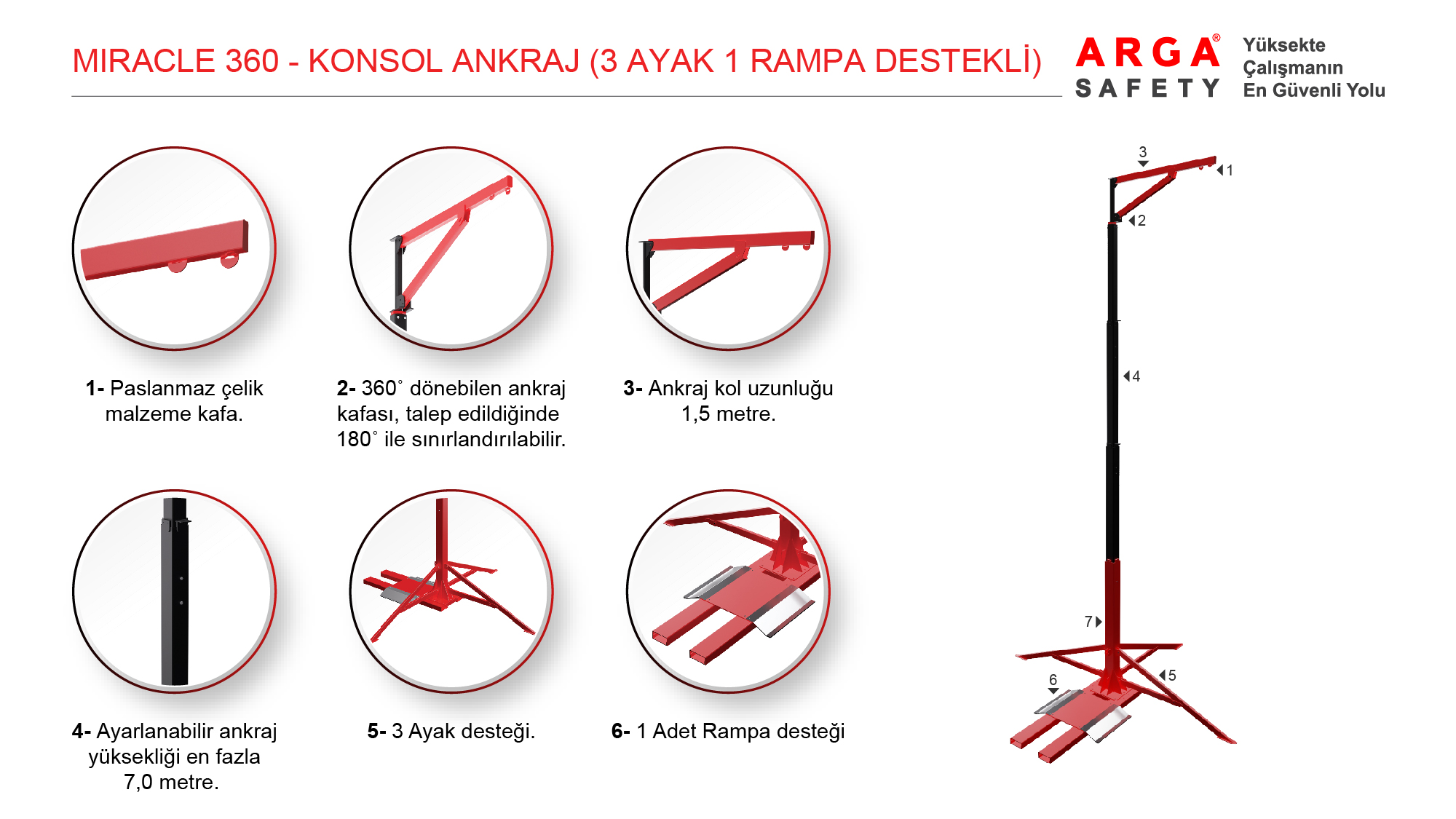

Arga Safety Miracle 360 Cantilever Anchorage (3-Leg & 1-Ramp Supported) Technical Equipments.[/caption>
Technical Specifications
- User Capacity: Features independent anchorage points, allowing 2 users to work safely at the same time.
- Working Angle: Equipped with a 360-degree rotating anchorage head; the rotation angle can be restricted to 180 degrees according to the operational area.
- Height Adjustment: Thanks to its telescopic body structure, the working height can be adjusted up to a maximum of 7.0 meters.
- Anchorage Arm Length: Features a 1.5-meter arm length that optimizes the safe working radius.
- Stabilization System: Equipped with 3 support legs and 1 ramp support for maximum stable stance in tight spaces.
- Mobility: Easy to transport via forklift and offers practical installation thanks to its design.
- Surface Resistance: Sandblasting, cataphoresis, and powder coating processes have been applied for resistance against corrosion and outdoor conditions.
- Standards: Fully compliant with EN 795 and CEN/TS 16415 standards.
| Order Code | Product Name | Leg | Standard | Weight | ||||
|---|---|---|---|---|---|---|---|---|
| Product Name | Product Description | Leg Support | Ramp Support | EN 795 | CEN/TS 16415 | EN 360 | (Kg/Piece) | |
| MC3A1R10 | MIRACLE 360 | Adjustable Cantilever Anchor (2 Persons) (with 3 Legs, 1 Ramp Support) | 3 | 1 | ✓ | ✓ | Provide information on order | 510 kg |
