Ocean Tripod Professional Fall Protection and Rescue System

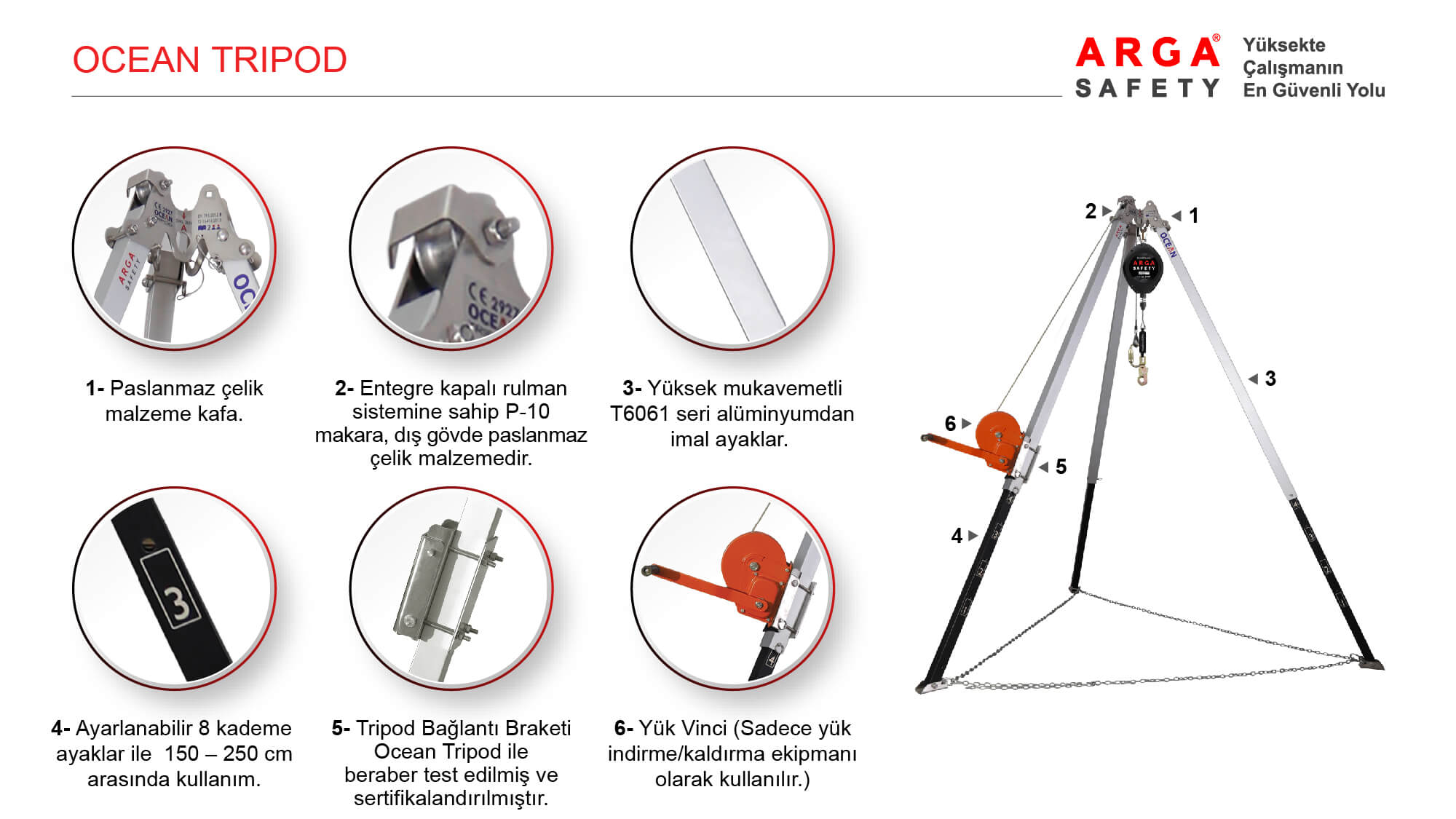

Ocean Tripod has been specially developed to establish a safe mobile anchorage point during confined space operations such as silos, sewage lines, and wells. The tripod head is manufactured from monolithic stainless steel material and incorporates 3 independent anchorage points where two users can connect simultaneously.
The legs of the system are made of high-strength T6061 series aluminum and offer flexible use in the 150-250 cm height range thanks to their 8-stage adjustable structure. The integrated sealed bearing P-10 pulley system on one leg ensures smooth and safe operation in roped applications. When required, rescue winches or retractable fall arrest blocks can be easily integrated into the legs, transforming it into a comprehensive rescue system.
Technical Specifications
- User Capacity: Designed for 2 users to work safely at the same time.
- Height Adjustment: Can be secured at the desired height between 150 cm and 250 cm with 8 different adjustment levels.
- Leg Width: Adapts to different ground types by offering an inside-to-inside width between 110 cm and 180 cm.
- Material Quality: The legs are manufactured from high-strength T6061 series aluminum, while the anchorage points and pulley body are made of stainless steel.
- Pulley System: Equipped with a P-10 pulley featuring an integrated sealed bearing system.
- Stabilization: Features a high-strength galvanized chain and carabiner set to prevent the legs from splaying or slipping.
- Accessory Compatibility: Incorporates fully compatible connection points for rescue winches and EN 360/EN 1496 standard fall arresters.
- Standards: Tested and approved in accordance with EN 795 Type B and CEN/TS 16415 Type B standards.
| Order Code | Product Information | Tripod Standard | Fall Arrester Standard | Weight | ||||
|---|---|---|---|---|---|---|---|---|
| Product Name | Product Description | EN 795 Type B | CEN/TS 16415 Type B | Length (m) | EN 360 | EN 1496 | (Gram/Piece) | |
| OT00010 | OCEAN TRIPOD | Adjustable Tripod with Pulley (2 Persons) | ✓ | ✓ | 22,100 g | |||
| OT00011 | P-10 | Tripod Pulley | 2,750 g | |||||
