Zuma Y 85 Double Leg Shock Absorbing Lanyard
Zuma Y 85 Double Leg Shock Absorbing Lanyard is specially developed for working at height activities performed by moving along a vertical or horizontal structure. Thanks to the shock absorbing system in the compact pouch on it, it ensures safety by dampening the impact load acting on the user in the event of a potential fall. Featuring sharp edge protection (RfU 11.074 AT) for horizontal use scenarios, Zuma Y 85 offers 130 cm and 200 cm length options. The shock absorber used in the lanyard has two different options for carrying capacity: 100 kg and 140 kg.
This professional double-leg lanyard is equipped with an OKS-17 S carabiner on the shock absorber harness end and DSA-85 type carabiners on the lanyard legs. It offers safe use in industrial sites with its high-strength polyester sleeves that protect the lanyard legs against external factors and friction, and its reflective transparent sleeves that preserve the stitching points.

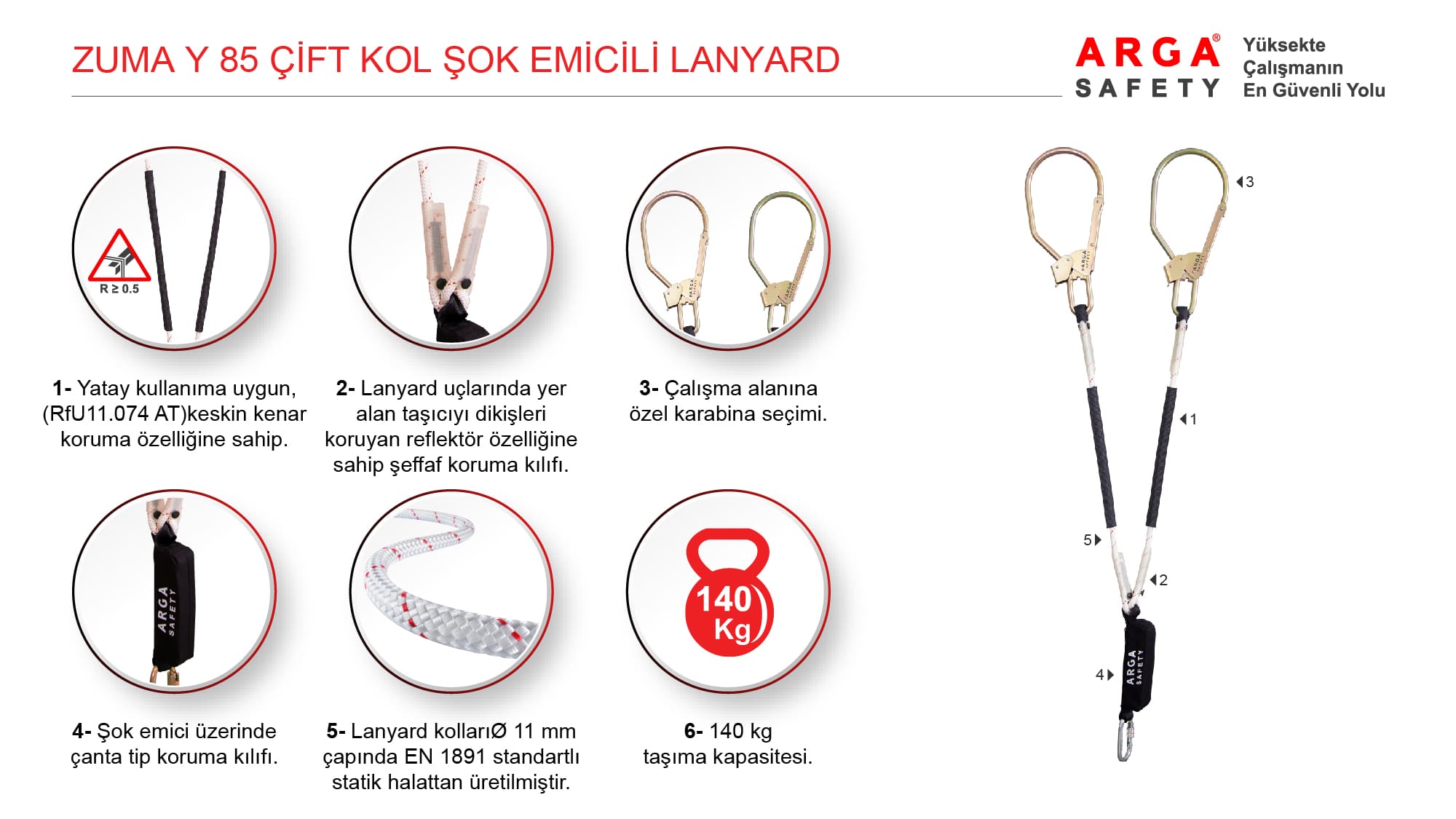

Technical Specifications
- Edge Protection: Features sharp edge protection suitable for horizontal use (RfU 11.074 AT).
- Shock Absorber Performance: Gradually tearing open in the event of a fall, it ensures that the load acting on the user remains below 6 kN.
- Rope Structure: The lanyard legs are manufactured from high-strength Ø 11 mm diameter static rope compliant with the EN 1891 standard.
- Carabiner Structure: Equipped with an OKS-17 S carabiner on the shock absorbing side and DSA-85 type carabiners on the lanyard legs.
- Protective Sleeve: Equipped with high-strength polyester protective sleeves that protect the lanyard legs against friction and external factors.
- Stitch Protection: Reflective transparent protective sleeves are used to protect the load-bearing stitches at the ends of the lanyard.
- Label Protection: The pouch-type protective sleeve protects the shock absorbing system and periodic inspection labels against UV rays and dust.
- Thread Quality: Stitched with high-strength, UV-resistant, and outdoor-resistant “Bonded” type contrast stitching threads.
- Transport: The product is shipped in its special transport bag.
- Standards: Fully complies with EN 355, EN 362, and RfU 11.074 AT standards.
| Order Code | Product Information | Standard | Weight (Gram/Piece) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Product Name | Product Type | Length (meter) | Energy Absorber Carabiner | Lanyard Carabiner | EN 355 | EN 362 | RfU 11.074 AT | ||
| 00ZY00013 | ZUMA Y | Twin Leg Energy Absorbing Lanyard | 1.30 m | - | - | ✓ | - | ✓ | 999 g |
| 00ZY01720 | ZUMA Y 17 | Twin Leg Energy Absorbing Lanyard | 2.00 m | OKS-17 S | OKS-17 S | ✓ | ✓ | ✓ | 1,112 g |
| 00ZY05313 | ZUMA Y 53 | Twin Leg Energy Absorbing Lanyard | 1.30 m | OKS-17 S | DSS-53 | ✓ | ✓ | ✓ | 1,644 g |
| 00ZY05320 | ZUMA Y 53 | Twin Leg Energy Absorbing Lanyard | 2.00 m | OKS-17 S | DSS-53 | ✓ | ✓ | ✓ | 1,755 g |
| 00ZY06013 | ZUMA Y 60 | Twin Leg Energy Absorbing Lanyard | 1.30 m | OKS-17 S | DSA-60 | ✓ | ✓ | ✓ | 1,570 g |
| 00ZY06020 | ZUMA Y 60 | Twin Leg Energy Absorbing Lanyard | 2.00 m | OKS-17 S | DSA-60 | ✓ | ✓ | ✓ | 1,683 g |
| 00ZY08513 | ZUMA Y 85 | Twin Leg Energy Absorbing Lanyard | 1.30 m | OKS-17 S | DSA-85 | ✓ | ✓ | ✓ | 2,320 g |
| 00ZY08520 | ZUMA Y 85 | Twin Leg Energy Absorbing Lanyard | 2.00 m | OKS-17 S | DSA-85 | ✓ | ✓ | ✓ | 2,430 g |
| 00ZY11013 | ZUMA Y 110 | Twin Leg Energy Absorbing Lanyard | 1.30 m | OKS-17 S | DSA-110 | ✓ | ✓ | ✓ | 2,560 g |
| 00ZY11020 | ZUMA Y 110 | Twin Leg Energy Absorbing Lanyard | 2.00 m | OKS-17 S | DSA-110 | ✓ | ✓ | ✓ | 2,675 g |
